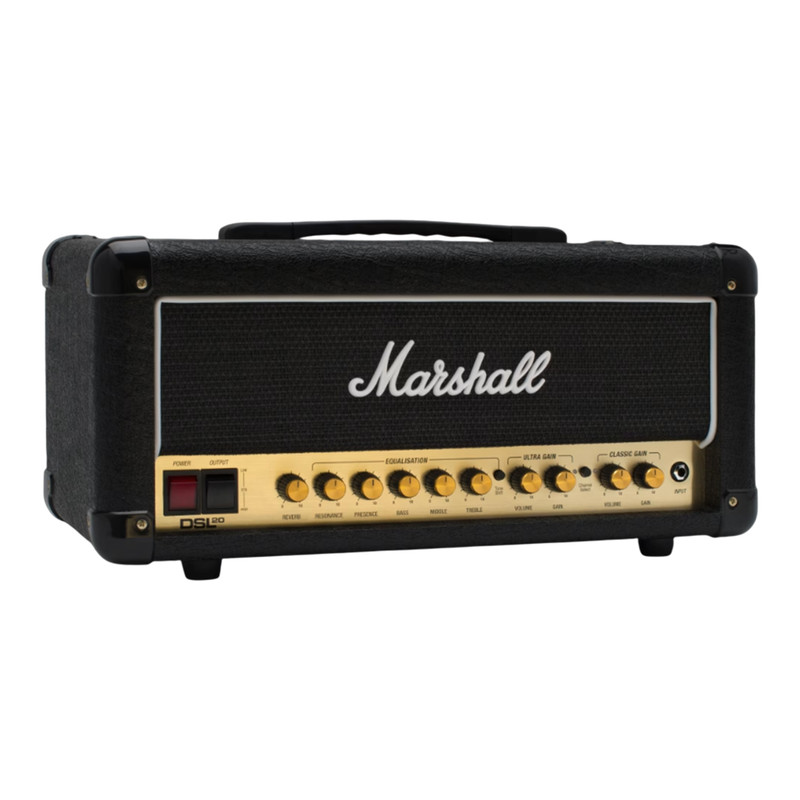

Marshall DSL20 Head

The DSL20 Head is for those who need the full rich tone of a valve amp in a compact and portable format.

From the moment you plug in, the DSL provides you with the functionality you need to take your sound from rehearsal to the studio with confidence.

Features - Marshall DSL20 Head

• All-valve
• 20W to 10W at the flick of a switch
• Three speaker outputs
• Additional presence and resonance features

Power Reduction from 20w to 10w at the Flick of a Switch
Selecting your preferred power setting should always be easy. That's why you can opt for either a commanding 20w or a more restrained 10w power output on the DSL20 Head at the flip of a switch. This feature is ideal for seamlessly transitioning from the rehearsal area to a more intimate home setting.

Additional Presence and Resonance Features
Give your sound more bite and depth thanks to additional presence and resonance features. With these elements you can finely tune and sculpt your tone, ensuring a more dynamic and impactful auditory experience during your performances or practice sessions.

Three Speaker Outputs
The adaptability of having three speaker outputs not only allows for customisation to match your unique acoustic preferences but also facilitates recording capabilities. The DSL20 Head is an ideal choice for both live gigs and studio practice sessions, offering versatility that caters to different musical contexts.

Compact and Portable
Take the DSL20 Head with you wherever you play. Its compact and portable design offers you convenience and flexibility. Its small size is perfect for home use. It's also easy to carry, making it an excellent companion for musicians on the move, especially when going to band practices.

Specifications - Marshall DSL20 Head

General

• Range: DSL
• Model: DSL20HR
• Channels: 2
• Technology: Valve

Electronics

• Output Wattage: 20w (with Power Reduction Option to 10w)
• Outputs: 3 x 1/4" Jack Sockets (16 Ohm Load / 8 Ohm Load), 1 x 3.5mm Jack Emulated Line Out
• Inputs: 1 x 1/4" Instrument Jack, 1 x 3.5mm Jack Aux In, Footswitch
• Controls: Classic Gain Channel Gain and Volume, Channel Select Switch, Ultra Gain Channel Gain and Volume, Tone Shift Switch, Treble, Middle, Bass, Presence, Reverb
• Effects: Digital Reverb
• Effects Loop: Yes, 1 x Series

Valves

• Preamp Valves: 2 x ECC83, 1 x ECC83 (Phase Splitter)
• Power Amp Valves: 2 x EL34

Unit Dimensions

• Weight (kg): 9.7 kg / 21 lbs
• Width (mm): 500 mm / 19.7"
• Height (mm): 250 mm / 9.8"
• Depth (mm): 240 mm / 9.4"

Included In The Box

• Box Contents: PEDL-90012 Included, Detachable Power Cable Included
